TS-1232PXU-RP
Overview
With 10GbE SFP+ and 2.5GbE network ports, the TS-1232PXU-RP delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity. The TS-1232PXU-RP supports file backup and synchronization, secure snapshot protection, and Google™ Workspace and Microsoft 365® enterprise account backup services, while providing instant recovery whenever needed. Coupled with the support for cloud gateways, building a new hybrid cloud storage solution has never been easier. The TS-1232PXU-RP also features a redundant power supply to ensure uninterrupted operation of mission-critical applications.
1 ) Two 10GbE SFP+ and two 2.5GbE RJ45 network ports accelerate file sharing.
2 ) HBS (Hybrid Backup Sync) backs up and syncs data to other NAS, servers and cloud storage for comprehensive disaster recovery planning.
3 ) Boxafe provides an extra layer of protection by backing up emails, cloud drives, contacts, and calendars of Google™ Workspace and Microsoft 365®.
4 ) Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
5 ) Expand the application potential of the TS-1232PXU-RP by installing a compatible PCIe card.
6 ) Increase the storage capacity of the TS-1232PXU-RP with QNAP TR RAID expansion enclosures or TL JBOD.
Higher performance x faster throughput
The TS-1232PXU-RP is powered by an Annapurna Labs Alpine AL-324 ARM® Cortex®-A57 quad-core 1.7 GHz processor with 4GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-1232PXU-RP provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.
Tested in QNAP Labs. Figures may vary by environment.
Test Environment :
NAS: TS-1232PXU-RP-4G, OS: QTS 4.4.3
Volume Type: 12 x Samsung 850 Pro 512 GB SSD (RAID 5), thick volume
Client PC: Windows 10, Intel Core i7-6700 3.4 GHz, 64 GB RAM, 10 GB file transfer
IOmeter: RAM*4, 30-sec ramp up time, 3-min seq. run time, 2 workers, 64-outstanding
Test Environment :
NAS: TS-1232PXU-RP-4G, OS: QTS 4.4.3
Volume Type: 12 x Samsung 850 Pro 512 GB SSD (RAID 5), thick volume
Client PC: Windows 10, Intel Core i7-6700 3.4 GHz, 64 GB RAM, 10 GB file transfer
IOmeter: RAM*4, 30-sec ramp up time, 3-min seq. run time, 2 workers, 64-outstanding
Supports AES-128-GMAC for SMB signing acceleration
SMB signing (also known as security signatures) is a security mechanism in the SMB protocol. For business applications that demand high-level security, SMB signing helps enhance file sharing security by protecting against interception attacks. However, SMB signing can also negatively impact data transmission performance. QTS 5.1.0 supports AES-128-GMAC signing acceleration (only in Windows Server 2022 and Windows 11 clients) that not only greatly increases data signing efficiency over SMB 3.1.1 but also enhances the CPU utilization of the NAS system - providing the best balance of security and performance.
x86 64-bit NAS
2X Faster
AES-CMAC: 619 MB/s Read
AES-128-GMAC: 1238 MB/s Read
ARM 64-bit NAS
10X Faster
AES-CMAC: 68 MB/s Read
AES-128-GMAC: 738 MB/s Read
Test environment:
Crystal Disk Mark 1MB throughput
Client: Windows Server 2022 (AMD EPYC 7232P 3.0GHz, DDR4 128GB) with 10GbE NICs
x86 NAS: TS-h1887XU-RP-E2336-32G, QTS 5.1.0 (GMAC), QTS 5.0.1 (CMAC), Samsung 870 EVO 1TB, RAID 50, onboard Aquantia X550 10GbE NIC
ARM NAS: TS-1232PXU-RP-4G, QTS 5.1.0 (GMAC), QTS 5.0.1 (CMAC), Samsung 860PRO 512GB, RAID 5, onboard Annapurna SFP+ 10GbE NIC
Crystal Disk Mark 1MB throughput
Client: Windows Server 2022 (AMD EPYC 7232P 3.0GHz, DDR4 128GB) with 10GbE NICs
x86 NAS: TS-h1887XU-RP-E2336-32G, QTS 5.1.0 (GMAC), QTS 5.0.1 (CMAC), Samsung 870 EVO 1TB, RAID 50, onboard Aquantia X550 10GbE NIC
ARM NAS: TS-1232PXU-RP-4G, QTS 5.1.0 (GMAC), QTS 5.0.1 (CMAC), Samsung 860PRO 512GB, RAID 5, onboard Annapurna SFP+ 10GbE NIC

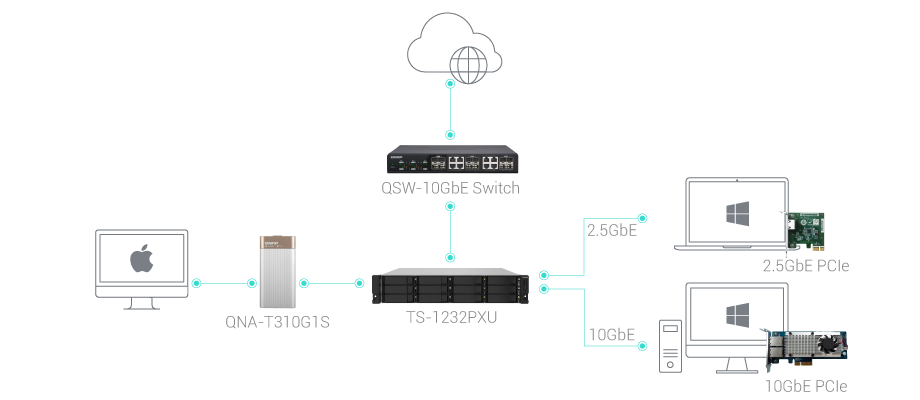

Upgrade your network to increase team efficiency
QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows® / Linux® devices, allowing all of your workstations to take advantage of high-speed networks.
Boost NAS performance with SSDs
As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-1232PXU-RP supports SSD cache technology, Qtier™ auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.

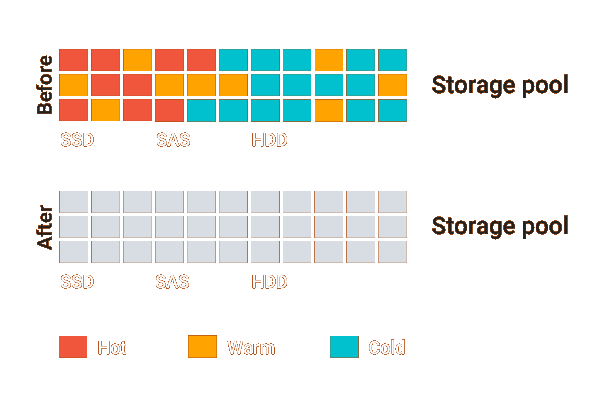

Balance performance and capacity
Boost NAS performance by enabling SSD caching. Coupled with Qtier™ auto-tiering technology, you can find the perfect storage configuration between high-performance SSD and high-capacity HDD while balancing performance and cost.

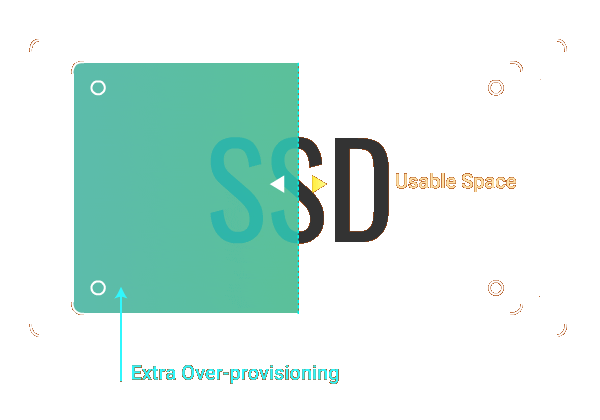

Extend SSD lifespan
SSD Extra Over-provisioning allows for adding 1~60% reserved space to avoid performance degradation, helping to increase system stability and extend SSD lifespan.
Multi-point file backup, access and sync
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization. With high-speed 10GbE connectivity, you can easily back up or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-1232PXU-RP into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-1232PXU-RP will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.
Easily find and automatically organize files and photos
The TS-1232PXU-RP provides greater convenience in file management. You can quickly find files using Qsirch, organize photos using QuMagie and auto-archive them with Qfiling.
File search
Qsirch quickly finds images, music, videos, documents, emails, and other files by using keywords, colors and different filters.
Photo management
QuMagie identifies people and objects in photos and supports automated photo categorization, allowing you to easily find similar photos.
Auto archiving
Qfiling automates file organization or recycling based on self-configured rules, greatly improving work efficiency.

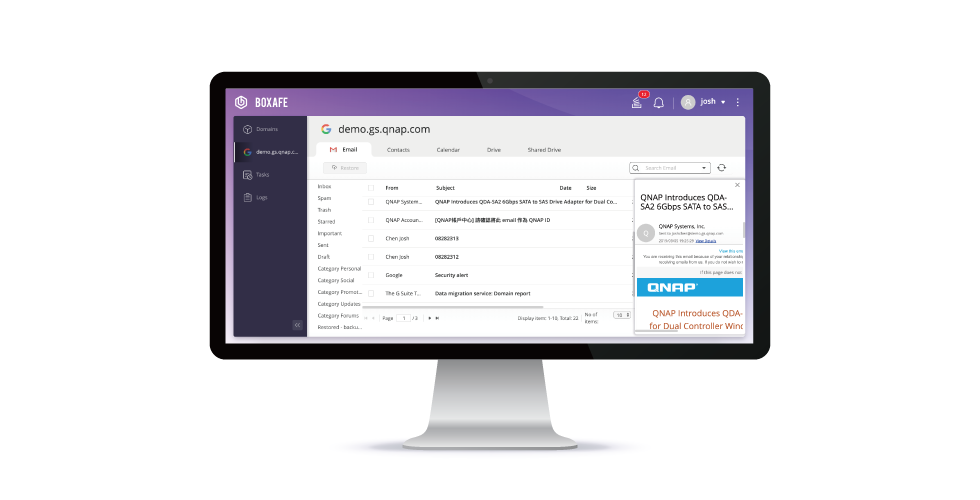

Secure Google™ Workspace and Microsoft 365® backup
The convenience of Software as a Service (SaaS) solutions such as Google™ Workspace and Microsoft 365® has led to its adoption by many businesses and organizations. However, many users fail to protect this cloud data against data loss, data recovery limitations, and human error. The TS-1232PXU-RP includes QNAP Boxafe, allowing you to back up files, emails, calendars and contacts from Google™ Workspace and Microsoft 365® to provide an extra layer of data protection for business cloud data.
Low Latency Access to Cloud Data with Cloud Storage Gateways
By deploying cloud storage gateways and enabling local caching on the TS-1232PXU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
HybridMount File-Based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD Cloud Block-Based Cloud Gateway
VJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN, databases, and confidential files.
Flexibly expand storage capacity whenever needed

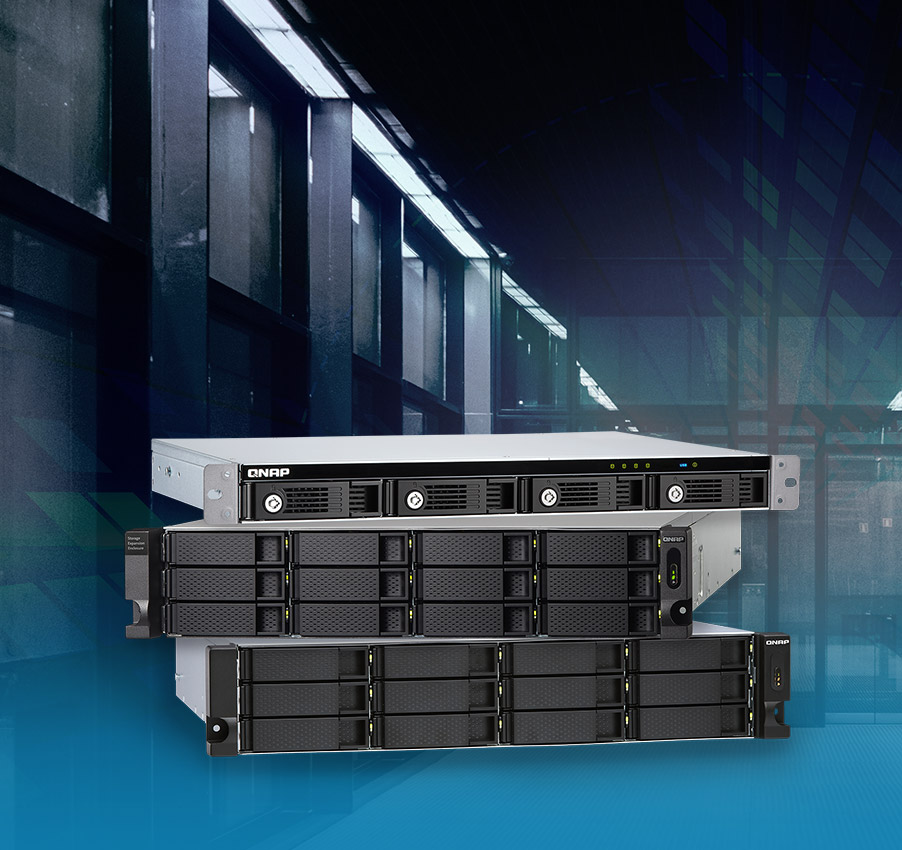

The storage capacity of the TS-1232PXU-RP can be easily expanded to meet growing data demands. Simply connect a QNAP TR RAID expansion enclosure or TL JBOD to expand storage space on demand. With QNAP's Virtual JBOD (VJBOD) technology, the unused space of the TS-1232PXU-RP can also be used to expand the storage space of other QNAP NAS.
PCIe expandability for greater application potential
The TS-1232PXU-RP includes a PCIe Gen 2 x2 slot, enabling you to expand its application potential by installing a compatible PCIe card.
Network Adapter
Add additional 2.5GbE/ 5GbE/ 10GbE network ports to boost bandwidth-demanding tasks, such as massive data transmission and fast backup/restoration.
QM2 Card
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.
USB Card
Add QNAP USB 3.2 Gen 2 expansion card to benefit from 10Gbps data transfer performance with newer, faster USB devices for transferring large media files.

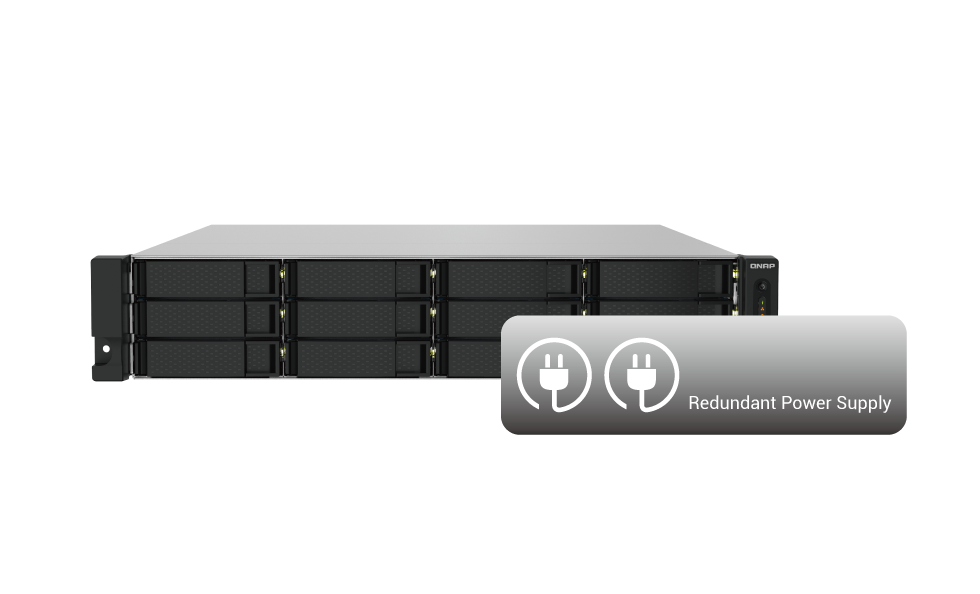

Redundant power for dependable services
The TS-1232PXU-RP is equipped with a redundant power supply to ensure maximum service uptime. Combined with dual 10GbE SFP+ and dual 2.5GbE ports, your businesses can easily maintain 24/7 operations, guaranteeing a cost-effective and reliable storage solution.
| NAS | |
|---|---|
| CPU Model | AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor |
| CPU Architecture | 64-bit ARM |
| Hardware Encryption Engine | ✓ |
| Memory | 4 GB UDIMM DDR4 (1 x 4 GB) |
| Drive Bays | 12 |
| Compatible Drive Type | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot Swappable Drive | ✓ (Not supported M.2 SSD) |
| USB 3.2 Gen 1 Port | 4 |
| System Fan | 2 x 70mm, 12VDC |
| Power Supply Unit / Adapter | 250W (x2) PSU, 100 - 240V |
| Total Memory Slots | 1 x UDIMM DDR4 |
| Maximum Memory Capacity | 16 GB (1 x 16 GB) |
| M.2 Drive Slots | Optional via a PCIe adapter |
| PCIe Expansion | 1 Slot 1: PCIe Gen 2 x2 PCIe bandwidth limitations will restrict the NAS 10GbE performance. Card dimensions for PCIe slot：220 x 68.9x 18.76 mm / 8.67 x 2.71 x 0.74 inches. |
| Form Factor (RU) | 2U Rackmount |
| Floating Point Unit | ✓ |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Wake on LAN (WOL) | ✓ Only the 2.5GbE port |
| Jumbo Frame | ✓ |
| LED Indicators | HDD 1-12, Status, LAN, Storage expansion |
| Buttons | Power, Reset |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 700 |
